Factory wholesale Crane Truck Mounted - Mobile truck crane – HONOUR SHINE Detail:

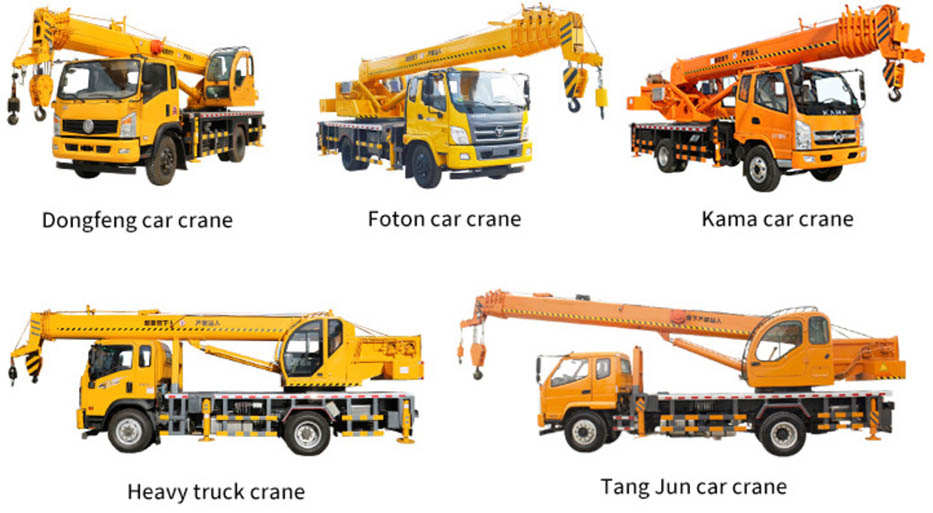

Truck Crane1

Advantage of truck crane:
* Leading performance: the boom length in full extension is 32m, the performance leading in 5%. The grade ability is 40%, which make the machine have good road adaptability.
* The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.
* The innovative jib system adopts embedded block, plug-in boom head and octagon jib, which has excellent lifting performance and safe and reliable lifting work.
* Six unique technologies supply the quality assurance, and make the products keep a high value.
* The control system is optimized by 8 patents; lifting, rotation, and luffing are easy and reliable.
* The unique stretch and retract technique prevents the misoperation; the stretch and retract of the boom is safer and more reliable.
* The unique U boom and plug-in boom head make the load-carrying capacity more balanced, and lift more smoothly.
* The torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is ahead of the industry.
* Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.
* Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.
* The humanity design makes the cab and control cab more spacious, and easy to operate.
* Six unique manufacturing technologies ensure the high quality.

16 TON truck crane
Brand  HONOUR SHINE Slewing ring Internal tooth 1.4m
Chassis model  Dongfeng Rotary mechanism Planetary steering
Total weight 14000kg Outrigger 5 full hydraulic legs (double section)
Overall dimension 10.5*2.3*3.48m Outrigger span 6250mm
Wheelbase 3800mm Outrigger spandouble 5800mm
Main hook single load 16000kg Protective device Two-way hydraulic lock
Max. Lifting Height 30m35m Working lamp double
Engine model Diesel Hydraulic pump double pump 50/40
Gearbox model 6-speed gearbox Oil and electricity 15kw IP6motor40/32
Power/motor 95kw (130hp) Tire 825-20
Emission Standards Guo3 Boom size 520mm*350mm
Braking System Air break Steering mechanism Hydraulic power direction
Boom structure type Walking rope within 7 meters and 5 knots Main lifting mechanism 16t hoist
Walking rope within 7 meters and 6 knots Deputy Lifting Organization 12t hoist
