6_VC61-QL1250U1QDZY 6×4 dumper
ISUZU VC61 6×4 Dump Truck (Euro V)
| Vehicle Model: |
QL1250U1QDZY |
|
|
Overall Dimension(L x W x H) |
8550x2500x3450mm |
|
|
Curb Weight: |
14220Kg |
|
|
Vehicle Parameters |
GVW: |
25000Kg |
|
Wheelbase: |
3985+1370mm |
|
|
Drive Type: |
6×4 |
|
|
Engine Model: |
6UZ1-TCG50 |
|
|
Engine |
Engine Power: |
279Kw |
|
Delivery Capacity: |
9839ml |
|
|
Horsepower: |
380Ps |
|
|
Transmission: |
ZF8S2030TO |
|
|
Transmission |
Forword Gear: |
8 Speed Gear |
|
Backward Gear: |
2 Speed Gear |
|
|
Cabin Type: |
Plat roof single sleeper |
|
|
Cabin |
Front Seat: |
2 |
|
Front Wheel Distance: |
2065mm |
|
|
Rear Wheel Distance: |
1855/1855mm |
|
|
Chassis |
Axle Loads: |
Three Axles |
|
Rear Axle Ratio: |
5.571 |
|
|
Tires: |
11(Including spare tire) |
|
|
Tire Model: |
12R22.5 18PR |
|
|
1 |
Power Steering |
|
|
2 |
AC |
|
|
3 |
Tubeless Tire |
|
|
4 |
ABS |
|
|
Standard Configuration: |
5 |
Free Maintenance Battery |
|
6 |
Central Lock |
|
|
7 |
Power Window |
|
|
8 |
Data Recorder |
|
|
9 |
PTO |
|
|
10 |
Air suspension Seat |
|
|
11 |
Air suspension Cabin |
|
|
Dump Body Parameter |
5800x2300x1500mm |
|
|
Tops Parameters |
Hydraulic Cylinder |
HYVA |
|
Thickness of the dump body |
Bottom 8mm, Side 6mm |
|
|
FOB Shanghai price（Validity:15days） |
Notes: Above specs is for reference, any otherspecs needed, or special requirements, can be discussed accordingly.

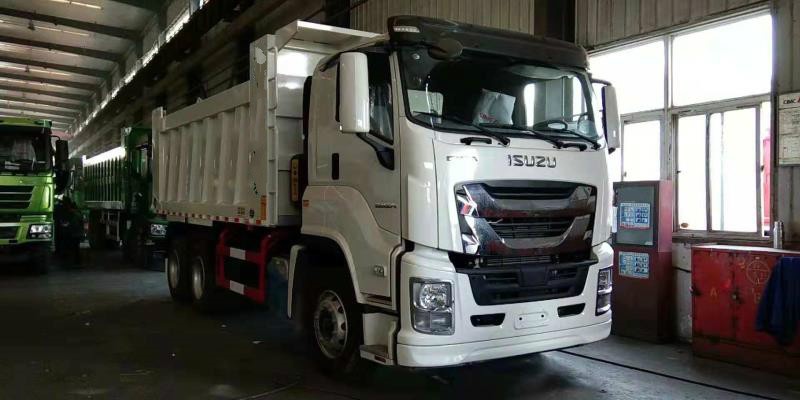

Photo For Reference:
