4_VC61-QL5330TZZU1VDZY 6×4 Wingvan Truck
ISUZU VC61 GIGA Wingvan Truck(Euro V)
| Vehicle Model: |
QL5330TZZU1VDZY |
|
|
Overall Dimension(L x W x H) |
12000x2550x4000mm |
|
|
Curb Weight: |
15500Kg |
|
|
Vehicle Parameters |
GVW: |
33000Kg |
|
Wheelbase: |
5820+1370mm |
|
|
Drive Type: |
6×4 |
|
|
Engine Model: |
6UZ1-TCG50 |
|
|
Engine |
Engine Power: |
279Kw |
|
Delivery Capacity: |
9839ml |
|
|
Horsepower: |
380Ps |
|
|
Transmission: |
ZF8S2030TO |
|
|
Transmission |
Forword Gear: |
8 Speed Gear |
|
Backward Gear: |
2 Speed Gear |
|
|
Seats |
Front Seat: |
2 |
|
Front Wheel Distance: |
2065mm |
|
|
Rear Wheel Distance: |
1855/1855mm |
|
|
Chassis |
Axle Loads: |
Three Axles |
|
Rear Axle Ratio: |
4.555(Optional) |
|
|
Tires: |
11(including spare tire) |
|
|
Tire Model: |
295/80R22.5 18PR |
|
|
1 |
Power Steering |
|
|
2 |
AC |
|
|
3 |
Tubeless Tire |
|
|
Standard Configuration: |
4 |
ABS |
|
5 |
Free Maintenance Battery |
|
|
6 |
Central Lock |
|
|
7 |
Power Window |
|
|
8 |
Data Recorder |
|
|
9 |
Air Suspension Seat |
|
|
10 |
Air Suspension Cabin |
|
|
Box Dimension: |
9800x2550x3960mm |
|
|
Top Parameters |
Material: |
Aluminium Alloy |
|
Floor Material: |
Wood |
|
|
FOB Shanghai Price:(Validity:15days) |
Notes: Above specs is for reference, any otherspecs needed, or special requirements, can be discussed accordingly.

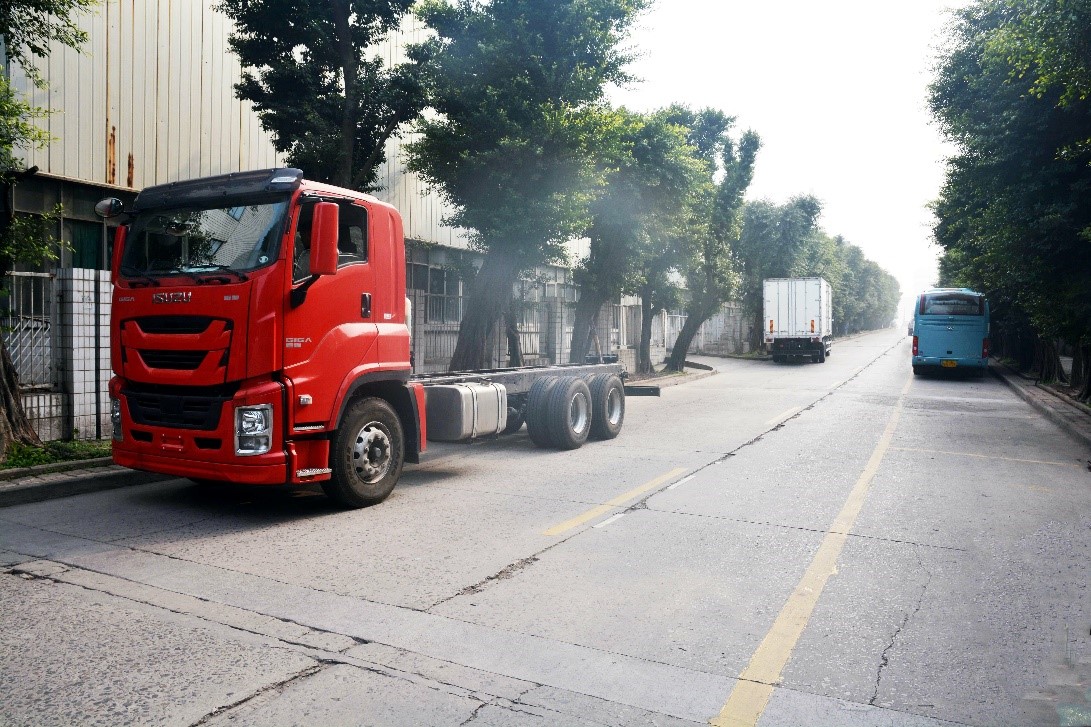

Photo for reference:
