13_VC61-QL5400GXFW2VCHY 8×4 Dumper
ISUZU VC61 8×4 Dump Truck(Euro V)
| Vehicle Model: |
QL5400GXFW2VCHY |
|
|
Chassis Dimension(L x W x H) |
10094x2490x3730mm |
|
|
Curb Weight: |
14450Kg |
|
|
Chassis Parameters |
GVW: |
40000Kg |
|
Wheelbase: |
1850+4000+1370mm |
|
|
Drive Type: |
8×4 |
|
|
Engine Model: |
6WG1-TCG51 |
|
|
Engine |
Engine Power: |
338Kw |
|
Delivery Capacity: |
15681ml |
|
|
Horsepower: |
460Ps |
|
|
Transmission: |
ZF8S2230TO |
|
|
Transmission |
Forword Gear: |
8 Speed Gear |
|
Backward Gear: |
2 Speed Gear |
|
|
Cabin |
Cabin Type: |
High Proof double sleepers |
|
Front Seat: |
2 |
|
|
Front Wheel Distance: |
2060/2060 |
|
|
Rear Wheel Distance: |
1855/1855 |
|
|
Chassis |
Axle Loads: |
Four Axles |
|
Rear Axle Ratio: |
5.571 |
|
|
Tires: |
13(Including spare tire) |
|
|
Tire Model: |
12R22.5 18PR |
|
|
1 |
Power Steering |
|
|
Configuration: |
2 |
AC |
|
3 |
Retro-reflective Marking |
|
|
4 |
Tubeless Tire |
|
|
5 |
ABS |
|
|
6 |
Free Maintenance Battery |
|
|
7 |
Central Lock |
|
|
8 |
Power Window |
|
|
9 |
Data Recorder |
|
|
10 |
PTO |
|
|
11 |
Air suspension cabin |
|
|
12 |
Air suspension seat |
|
|
Dimension of Dump body |
7300x2300x1800mm |
|
|
Hydraulic Cylinder |
HYVA |
|
| Tops Parameters |
Thickness of Dump body |
Bottom 8mm, side 6mm |
|
FOB Shanghai price(Validity:15days) |
Notes: Above specs is for reference, any otherspecs needed, or special requirements, can be discussed accordingly.

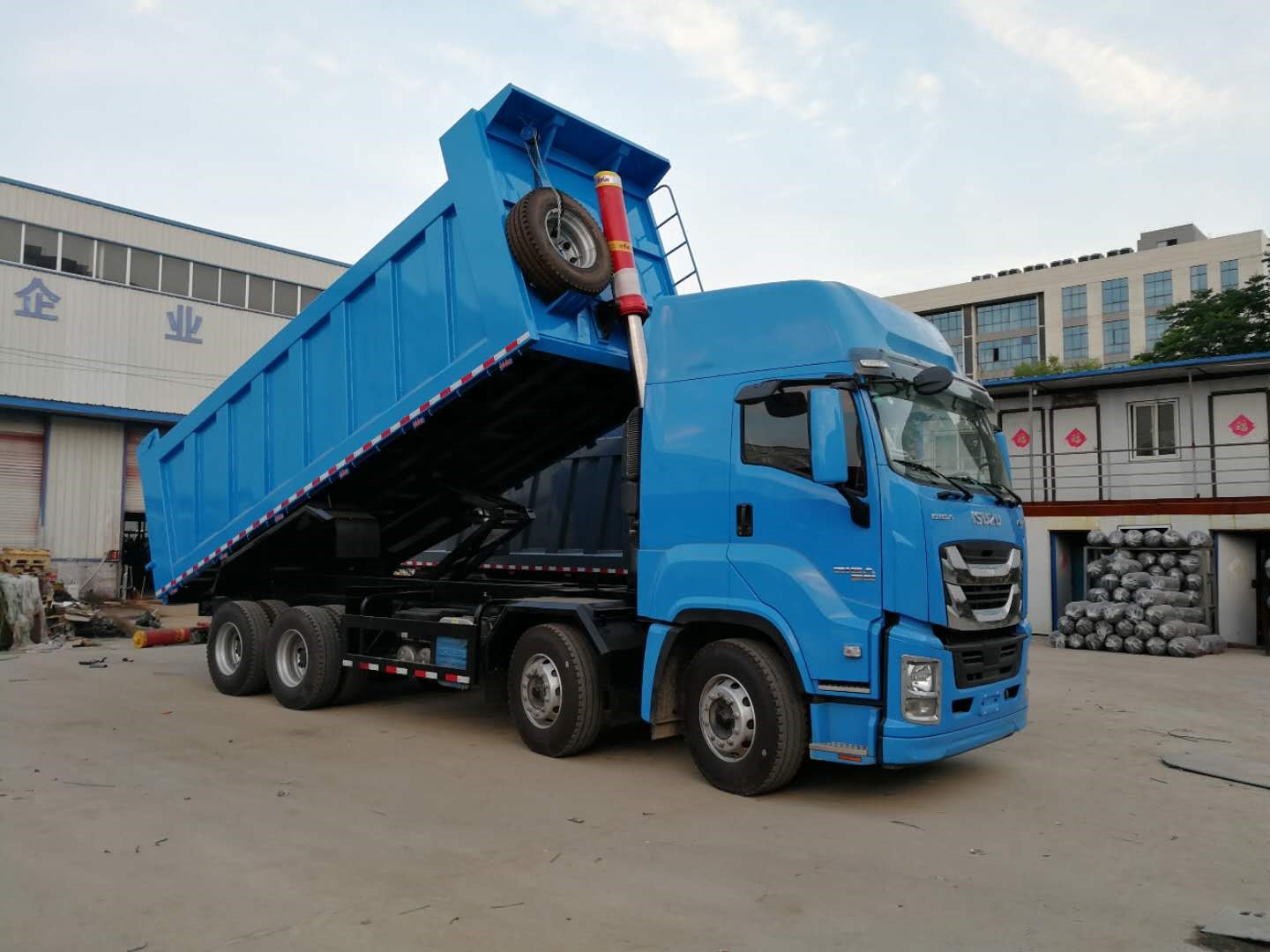

Photo For Reference:
