10_VC61-QL4250W2NCZ-460PS 6×4
ISUZU VC61 6×4 Tractor Specs(Euro V)
| Vehicle Model: |
QL4250W2NCZ |
|
|
Overall Dimension(L x W x H) |
6895x2540x3970(mm) |
|
|
Curb Weight: |
8870(Kg) |
|
|
Vehicle Parameters |
GVW: |
25000(Kg) |
|
Wheelbase: |
3385+1370(mm) |
|
|
Drive Type: |
6×4 |
|
|
Engine Model: |
6WG1-TCG51 |
|
|
Engine |
Engine Power: |
338(kw) |
|
Delivery Capacity: |
15681(ml) |
|
|
Horsepower: |
460PS |
|
|
Transmission: |
ZF16S2230TO |
|
|
Transmission |
Forword Gear: |
16 Speed Gear |
|
Backward Gear: |
2 Speed Gear |
|
|
Seats |
Cab Type: |
High Proof Double Berth |
|
Front Seat: |
2 |
|
|
Front Wheel Distance: |
2065,2045 |
|
|
Rear Wheel Distance: |
1855/1855,1875/1875 |
|
|
Chassis |
Axle Loads: |
Three Axles |
|
Rear Axle Ratio: |
3.909(Optional) |
|
|
Tires: |
11(Including Spare Tire) |
|
|
Tire Model: |
315/80R22.5 16PR |
|
|
Standard Configuration: |
1 |
Power Steering |
|
2 |
AC |
|
|
3 |
Retro-reflective Marking |
|
|
4 |
Tubeless Tire |
|
|
5 |
ABS |
|
|
6 |
Free Maintenance Battery |
|
|
7 |
Power Window |
|
|
8 |
Air Suspension Cab and seat |
|
|
10 |
Data Recorder |
|
|
11 |
50#Fifth Wheel |
|
|
13 |
600L Fuel Tank |
|
|
14 |
Multiple-leaf spring |
|
|
15 |
Iron Rims |
|
| FOB Shanghai price:(Validity：15days) |
Notes: Above specs is for reference, any otherspecs needed, or special requirements, can be discussed accordingly.

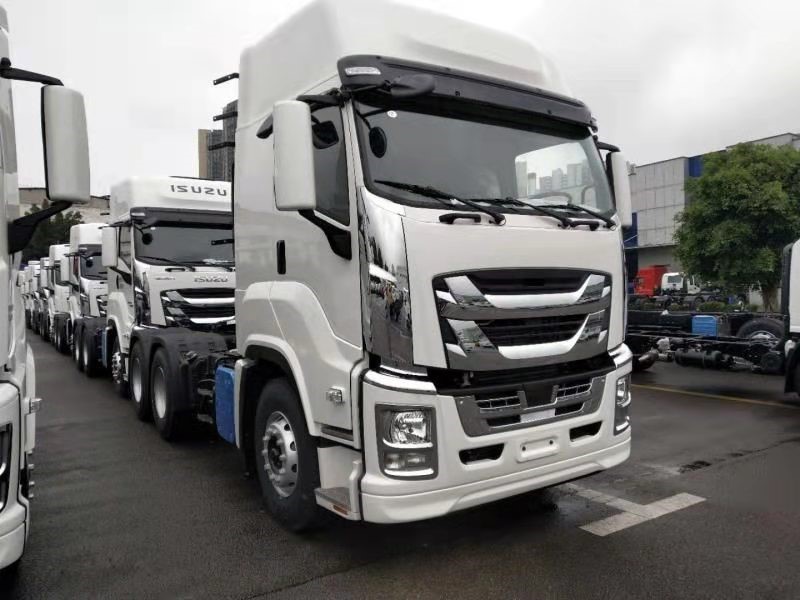

Photo For Reference:
